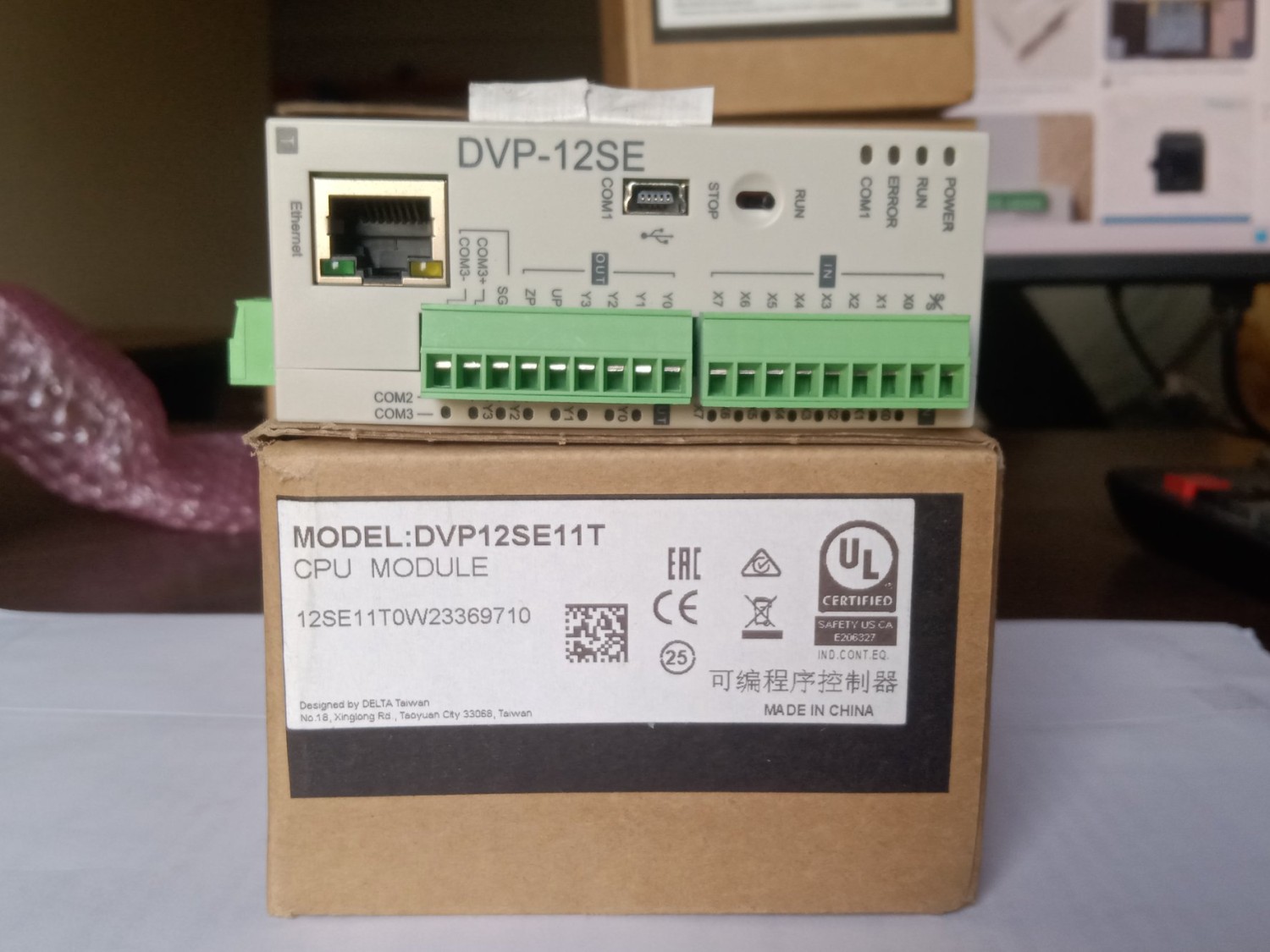

DVP12SE11T DVP-SE Series Ethernet PLC Controller (Transistor Output)

The Delta DVP12SE11T DVP-SE Series Ethernet PLC Controller is a high-performance network-enabled programmable logic controller designed for advanced industrial automation and motion control applications. Equipped with a powerful 32-bit CPU, built-in Ethernet communication, dual RS-485 ports, Mini USB connectivity, and high-speed transistor outputs, this PLC provides exceptional performance for modern industrial systems.

As part of Delta's advanced DVP-SE Series, the DVP12SE11T offers fast instruction execution, flexible expansion capability, and comprehensive networking functions. The built-in Ethernet port supports Modbus TCP and EtherNet/IP communication, making it ideal for industrial networking, SCADA integration, remote monitoring, and smart factory applications. Its transistor output design is particularly suitable for servo motor control, stepper motor control, positioning systems, and other high-speed motion control applications.

The DVP12SE11T is widely used in textile machinery, pharmaceutical production lines, packaging systems, food processing plants, water treatment facilities, machine automation projects, and factory automation systems.

Technical Specifications:

• Brand: Delta Electronics
• Model: DVP12SE11T
• Series: DVP-SE Series
• Product Type: Ethernet PLC Controller
• CPU Type: 32-Bit High-Speed Processor
• Power Supply: 24 VDC
• Digital Inputs: 8 Points
• Transistor Outputs: 4 Points
• Total I/O Points: 12
• Output Type: NPN Transistor
• Program Capacity: 16K Steps
• Data Registers: 12K Words
• Communication Ports: Mini USB, Ethernet, RS-485 × 2
• Ethernet Protocols: Modbus TCP, EtherNet/IP Adapter
• High-Speed Inputs: Up to 100 kHz
• High-Speed Pulse Outputs: 2 × 100 kHz, 2 × 10 kHz
• Execution Speed: 0.64 μs
• Expansion Capability: Up to 480 I/O Points
• Mounting Type: DIN Rail Mounting
• Operating Temperature: 0°C to 55°C
• Protection Class: IP20
• Battery-Free Design with RTC Support
• Application: Motion Control, Industrial Networking, Machine Automation, SCADA Systems, Process Control, Factory Automation
