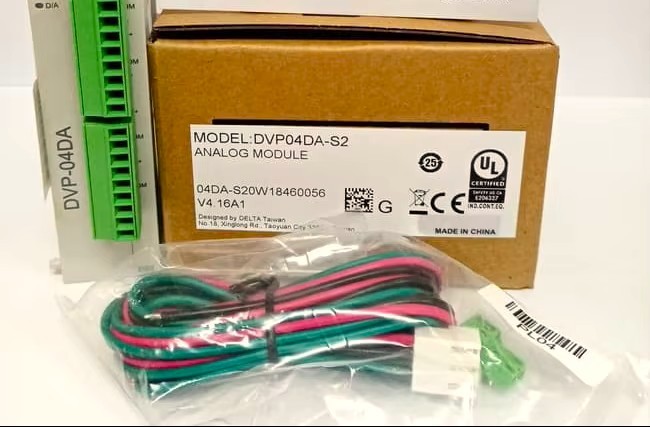

DVP04DA Analog Output Expansion Module (4AO)

The Delta DVP04DA Analog Output Expansion Module is a high-precision analog signal output module designed for Delta DVP Series PLC systems. Featuring 4 analog output channels, this module enables PLCs to generate accurate voltage and current output signals for controlling inverters, control valves, actuators, process instruments, and various industrial automation devices.

The DVP04DA supports both voltage and current output modes, making it suitable for a wide range of industrial control applications. With high-resolution digital-to-analog conversion and reliable signal transmission, the module ensures precise control and stable operation in demanding industrial environments.

Designed for seamless integration with Delta DVP Series PLCs, the DVP04DA offers compact DIN-rail mounting, easy installation, and dependable performance. It is widely used in process control systems, water treatment plants, textile machinery, HVAC systems, pharmaceutical production lines, food processing facilities, and factory automation projects.

Technical Specifications:

• Brand: Delta Electronics
• Model: DVP04DA
• Product Type: Analog Output Expansion Module
• Analog Output Channels: 4 Channels
• Output Signal Type: Voltage / Current Output
• Voltage Output Range: 0~10 VDC
• Current Output Range: 0~20 mA
• Resolution: 12-bit
• Digital Data Range: 0~4000
• Supply Voltage: 24 VDC (20.4~28.8 VDC)
• Conversion Time: 400 μs / Channel
• Output Impedance: ≤ 0.5 Ω (Voltage Output)
• Load Impedance: 0~500 Ω (Current Output)
• Communication: PLC Expansion Bus
• Expansion Support: Up to 8 Modules per PLC
• Mounting Type: DIN Rail Mounting
• Operating Temperature: 0°C to 55°C
• Protection Class: IP20
• Short Circuit Protection: Supported
• Application: VFD Control, Process Control, Control Valves, Actuators, Water Treatment, Industrial Automation
