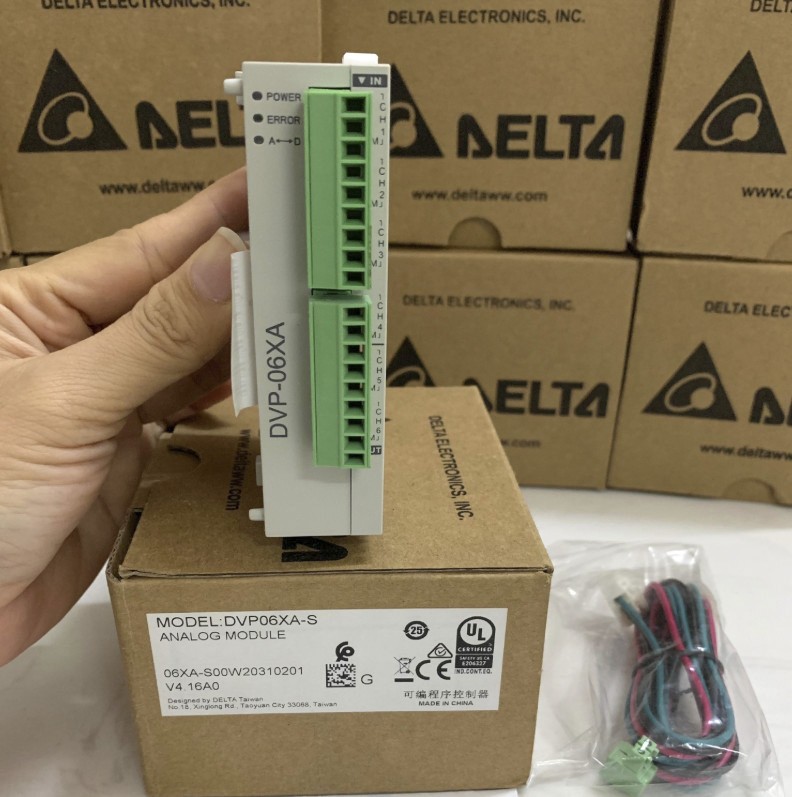

DVP06XA Analog Input/Output Expansion Module (4AI + 2AO)

The Delta DVP06XA Analog Input/Output Expansion Module is a high-performance mixed analog I/O module designed for Delta DVP Series PLC systems. Featuring 4 analog input channels and 2 analog output channels, this module enables precise signal acquisition and control for a wide range of industrial automation and process control applications.

The DVP06XA supports both voltage and current input/output signals, allowing seamless integration with sensors, transmitters, inverters, control valves, and other industrial field devices. With high-resolution analog conversion, fast response time, and reliable signal processing, the module ensures accurate monitoring and control of critical industrial processes. It is ideal for water treatment systems, textile machinery, pharmaceutical plants, food processing facilities, HVAC systems, and factory automation projects.

Technical Specifications:

• Brand: Delta Electronics
• Model: DVP06XA
• Product Type: Analog Input/Output Expansion Module
• Analog Inputs: 4 Channels
• Analog Outputs: 2 Channels
• Input Signal Type: Voltage / Current Input
• Output Signal Type: Voltage / Current Output
• Input Voltage Range: ±10V, ±5V
• Input Current Range: ±20mA, 0–20mA, 4–20mA
• Output Voltage Range: 0–10V
• Output Current Range: 0–20mA
• Resolution: Up to 14-bit
• Supply Voltage: 24 VDC
• Response Time: 400 μs/Channel
• Communication: PLC Expansion Bus
• Maximum Expansion Modules: 8 Modules per PLC
• Mounting Type: DIN Rail Mounting
• Operating Temperature: 0°C to 55°C
• Protection Class: IP20
• Application: Process Control, VFD Control, Sensor Integration, Water Treatment, Industrial Automation, Factory Automation
