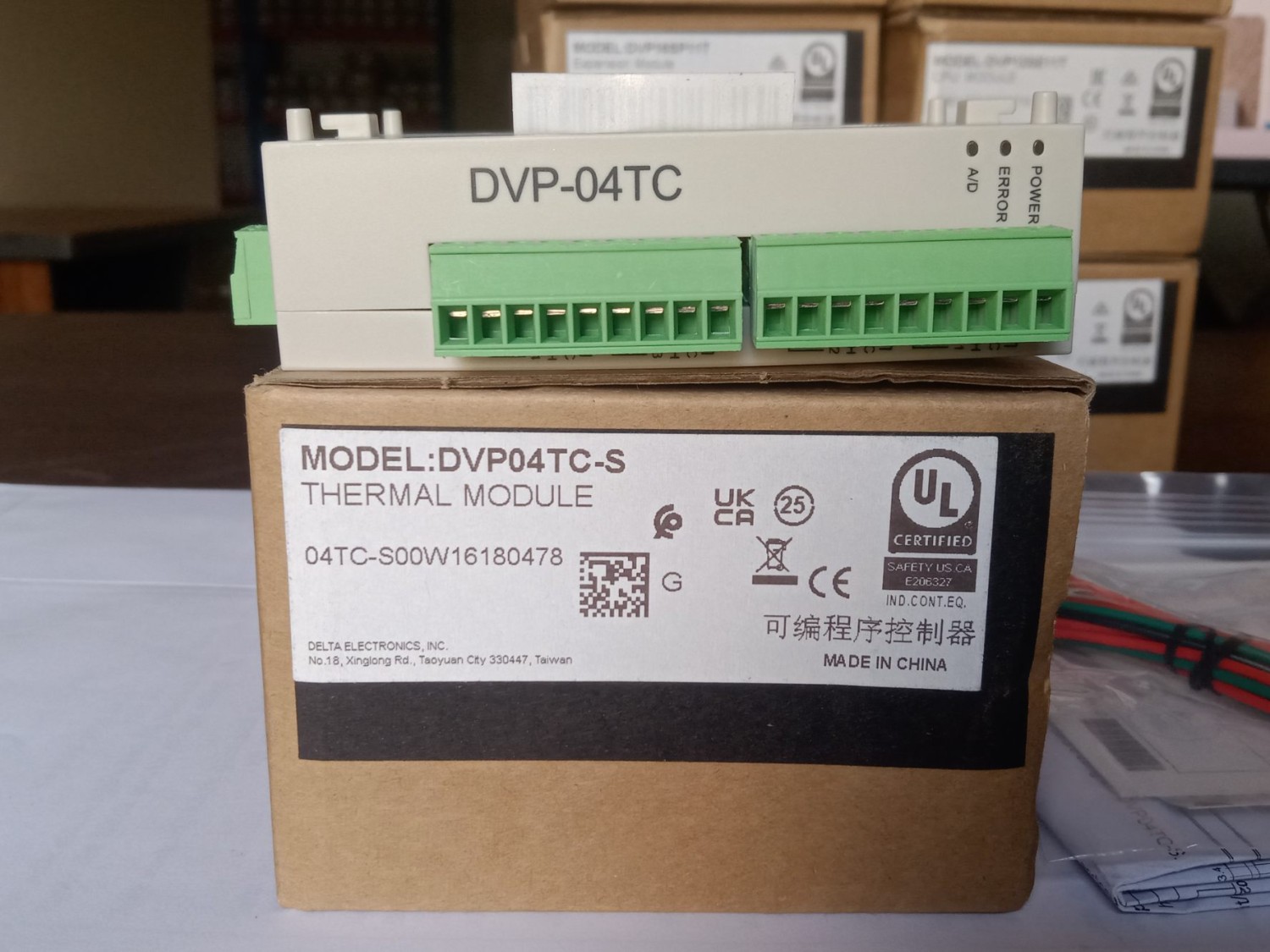

DVP04TC Thermocouple Temperature Input Expansion Module (4-Channel TC Input)

The Delta DVP04TC Thermocouple Temperature Input Expansion Module is a high-precision temperature measurement module designed for Delta DVP Series PLC systems. Featuring 4 thermocouple input channels, this module enables accurate temperature monitoring and process control in industrial automation applications.

The DVP04TC supports multiple thermocouple sensor types including K, J, R, S, T, E, N, and B, making it suitable for a wide range of temperature measurement requirements. With high-speed data acquisition, built-in cold junction compensation, and advanced diagnostic functions, the module ensures stable and reliable temperature monitoring even in demanding industrial environments.

Designed for seamless integration with Delta DVP Series PLCs, the DVP04TC is widely used in furnaces, ovens, plastic processing machines, food processing plants, pharmaceutical production systems, textile industries, heat treatment equipment, and factory automation projects.

Technical Specifications:

• Brand: Delta Electronics
• Model: DVP04TC
• Product Type: Thermocouple Temperature Input Expansion Module
• Input Channels: 4 Thermocouple Inputs
• Supported Thermocouple Types: K, J, R, S, T, E, N, B
• Resolution: 0.1°C / 0.1°F
• Temperature Units: Celsius (°C) and Fahrenheit (°F)
• Built-in Cold Junction Compensation (CJC)
• Supply Voltage: 24 VDC
• Conversion Time: 200 ms per Channel
• Digital Data Format: 16-bit Two's Complement
• Accuracy: High-Precision Measurement
• Open Thermocouple Detection: Supported
• Self-Diagnostic Function: Supported
• Communication: PLC Expansion Bus
• Expansion Support: Up to 8 Modules per PLC
• Digital I/O Consumption: None
• Mounting Type: DIN Rail Mounting
• Operating Temperature: 0°C to 55°C
• Protection Class: IP20
• Application: Furnace Control, Industrial Heating Systems, Plastic Machinery, Food Processing, Pharmaceutical Industry, Temperature Monitoring, Factory Automation
