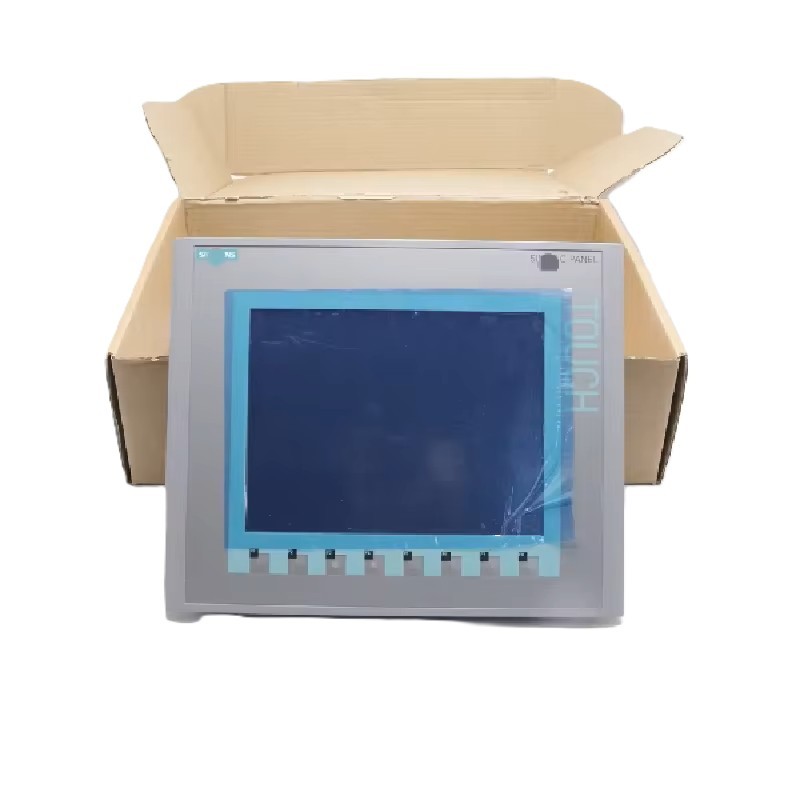

The Siemens SIMATIC HMI KTP1000 Basic Color PN (6AV6647-0AF11-3AX0) is an industrial human-machine interface designed for machine operation, process visualization, and monitoring in PLC-based automation systems. This Basic Panel features a 10.4-inch TFT color display with touchscreen and physical function keys, allowing operators to monitor machine conditions, view alarms, enter process values, and interact with configured control screens.

The KTP1000 Basic Color PN uses a PROFINET interface for Ethernet-based communication with compatible PLCs and automation equipment. Its 640 × 480 pixel resolution and 256-color display are suitable for established industrial applications that require a straightforward operator interface.

The panel supports engineering with compatible versions of WinCC flexible and Siemens WinCC Basic / STEP 7 Basic software. Because it belongs to an older product generation, software compatibility and replacement suitability should be checked before purchasing.

Technical Specifications

Key Features and Benefits

• Large 10.4-inch display: Provides a broad viewing area for machine screens and process information.

• Touchscreen and function keys: Supports flexible interaction with configured HMI applications.

• 256-color TFT display: Presents machine status, process values, and alarms.

• PROFINET communication: Enables Ethernet-based connectivity with compatible automation systems.

• Alarm and recipe functions: Supports configured alarm handling, process visualization, and recipe management.

• Industrial mounting design: Designed for panel installation with IP65 front protection when correctly mounted.

Applications

• Industrial machinery operation

• PLC-based production systems

• Manufacturing and assembly lines

• Packaging and material-handling equipment

• Process monitoring and alarm visualization

• Maintenance and replacement of compatible legacy Siemens HMI systems

Compatibility and Installation

Before ordering, verify the PLC communication protocol, existing HMI project, engineering software version, mounting cutout, and electrical requirements. This model uses PROFINET; it does not provide a PROFIBUS/MPI interface. Confirm that your existing project can be opened or converted using the available engineering software.

Installation and commissioning should be performed by qualified personnel.

Product Availability

This is an older Siemens HMI model, and some distributors list it as withdrawn from their regular product offering. Availability may depend on remaining stock, specialist suppliers, or refurbished units. Confirm the product condition, warranty, and delivery lead time before ordering.
