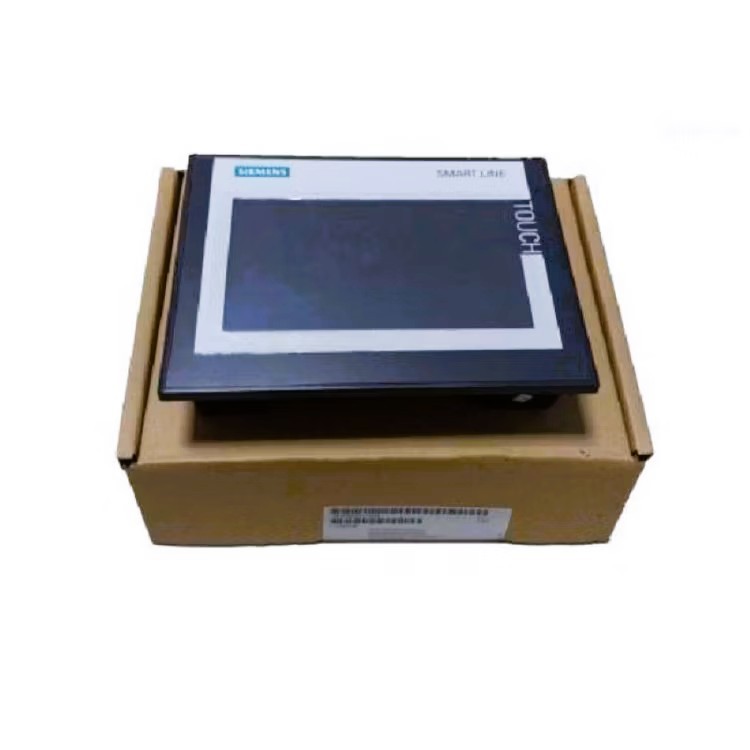

The Siemens SIMATIC HMI SMART 1000 IE V3 (6AV6648-0CE11-3AX0) is a 10.1-inch industrial touchscreen operator panel designed for machine operation, process visualization, and monitoring in compatible PLC-based automation systems. Its widescreen TFT color display supports 65,536 colors and a 1024 × 600 pixel resolution, providing a clear interface for viewing process values, alarms, machine status, and configured operating screens.

The SMART 1000 IE V3 provides an Ethernet RJ45 interface, an RS422/485 serial interface, and a USB Type-A host port. It also supports a hardware real-time clock for time-related functions. The panel is configurable using WinCC flexible SMART, making it suitable for compatible Siemens SMART HMI projects.

Technical Specifications

Key Features and Benefits

• Large 10.1-inch touchscreen: Provides a spacious interface for machine operation and process monitoring.

• High-resolution widescreen display: The 1024 × 600 resolution supports detailed industrial visualization.

• 65,536 display colors: Presents configured machine screens, alarms, and process information clearly.

• Multiple communication interfaces: Ethernet and RS422/485 support integration with compatible automation equipment.

• USB host connectivity: Supports compatible USB devices and service operations.

• Real-time clock: Supports time-dependent functions in configured HMI applications.

• Industrial panel protection: IP65 front protection when properly mounted with the specified seal.

Applications

• PLC-based machine operation and monitoring

• Industrial production and assembly lines

• Packaging and material-handling equipment

• Factory automation operator stations

• Process visualization and alarm monitoring

• Maintenance of compatible Siemens SMART HMI installations

Compatibility and Installation

Before purchasing, confirm PLC compatibility, Ethernet or serial communication requirements, existing HMI project compatibility, and the available WinCC flexible SMART engineering software. Do not assume that projects from other Siemens HMI families can be transferred without conversion or modification.

Verify the panel mounting cutout, power supply, and cable requirements against the manufacturer's documentation. Installation and commissioning should be performed by qualified personnel.

Product Availability

This is a Siemens SMART HMI V3-generation panel. Availability and lifecycle status can vary by regional catalog and distributor. Confirm stock, product condition, warranty, and delivery lead time before ordering.
