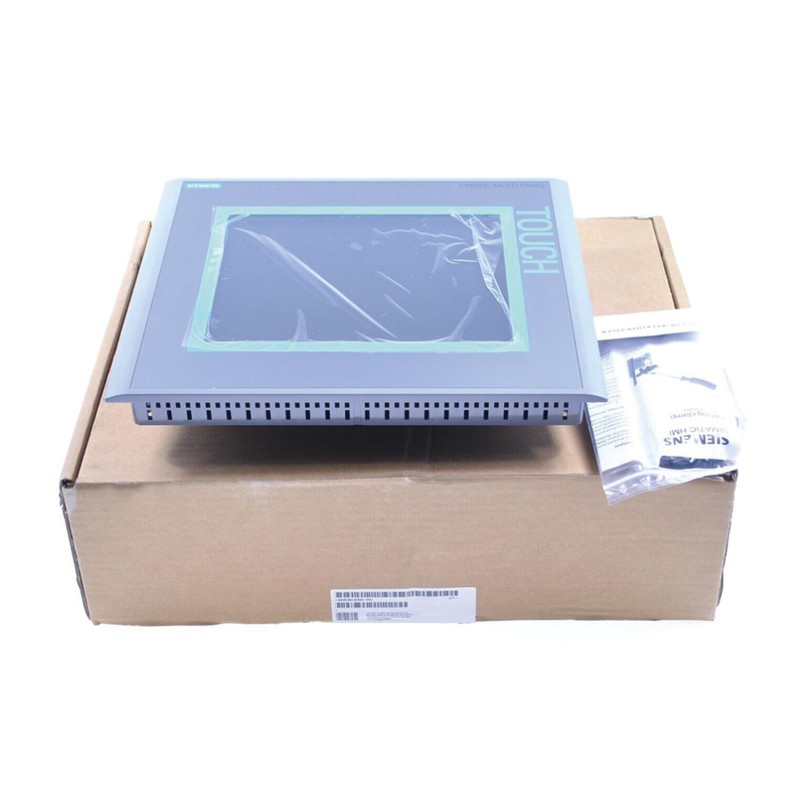

The Siemens SIMATIC HMI MP 277 10" Touch Multi Panel (6AV6643-0CD01-1AX1) is an industrial human-machine interface designed to provide operators with a touchscreen interface for monitoring and controlling automation processes. It features a 10.4-inch TFT color display, resistive touchscreen operation, and multiple communication interfaces for integration with compatible industrial control systems.

With 6 MB of user configuration memory, 128 MB of main memory, and support for a range of industrial communication protocols, the MP 277 can display process values, alarms, recipes, and machine status information. Its Ethernet and serial interfaces support communication with compatible SIMATIC PLCs and other supported automation equipment.

Technical Specifications

Key Features

• 10.4-inch color touchscreen: Provides an operator interface for viewing machine status and process information.

• Industrial communication: Ethernet and RS422/RS485 interfaces support integration with compatible automation networks.

• Process monitoring: Supports alarm displays, process values, recipes, and operator interaction.

• Legacy system support: Suitable for maintaining existing machines and automation systems designed around the SIMATIC MP 277.

• Industrial panel installation: Front IP65 protection is available when the unit is installed according to Siemens requirements.

• Memory-card and USB support: Provides options for supported data transfer, backup, and service operations.

Applications

• Factory and production-line automation

• Machine monitoring and operator control

• Industrial process visualization

• PLC-based control systems

• Maintenance and replacement of existing SIMATIC MP 277 installations

• Industrial equipment refurbishment and retrofit projects

Compatibility and Installation Notes

Confirm the existing PLC, communication protocol, project file, and configuration software before purchasing. This is a legacy HMI, so replacement planning should consider project migration, communication compatibility, panel cutout dimensions, and the availability of suitable spare parts. Check the exact hardware revision and Siemens documentation before installation.

Product availability note: This model is discontinued as a standard new product and may be available through specialist automation spare-part suppliers. Verify condition, warranty, and authenticity with the seller. A replacement model may require project conversion and should not be assumed to be a direct plug-and-play substitute.
