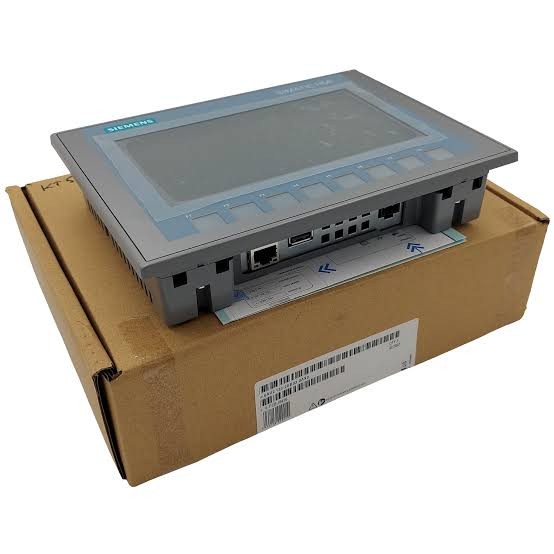

The Siemens SIMATIC HMI KTP700 Basic Panel (6AV2123-2GB03-0AX0) is an industrial human-machine interface designed for machine operation, process visualization, and monitoring in PLC-based automation systems. This second-generation Basic Panel features a 7-inch widescreen TFT color display with touchscreen and physical key operation, enabling operators to view machine status, monitor process values, acknowledge alarms, and interact with configured control screens.

The KTP700 Basic Color PN supports PROFINET communication for integration with compatible Siemens PLCs and industrial automation equipment. Its 800 × 480 pixel resolution and 65,536-color display provide clear visualization for standard industrial applications. The panel can be configured using WinCC Basic V13 or STEP 7 Basic V13 and compatible versions, depending on project requirements.

Technical Specifications

Key Features and Benefits

• 7-inch widescreen display: Provides a convenient viewing area for machine screens and process information.

• Touch and key operation: Combines touchscreen interaction with physical keys for operator control.

• Color process visualization: Displays configured screens, alarms, and machine status in 65,536 colors.

• PROFINET communication: Enables connection to compatible PLCs and industrial automation networks.

• Flexible configuration: Supports engineering with compatible Siemens WinCC Basic and STEP 7 Basic software.

• Industrial automation design: Suitable for routine machine operation and monitoring tasks.

Applications

• Industrial machine operation and monitoring

• PLC-based automation systems

• Manufacturing and assembly lines

• Packaging and material-handling machinery

• Process monitoring and alarm visualization

• Industrial equipment control stations

Compatibility and Installation

Before ordering, confirm compatibility with your PLC, PROFINET network, existing HMI project, and engineering software version. Check mounting dimensions, panel cutout, electrical requirements, and installation clearances against the official Siemens documentation. Installation and commissioning should be performed by qualified personnel.

Product Availability

The Siemens Industry Mall catalog consulted lists this model as an active product. Actual stock, warranty, delivery lead time, and availability in Bangladesh should be confirmed with the supplier before purchase.
